Spec
ERIS -1.1 Phase Only LCOS SLM
The analog ERIS-1.1 Phase Only Spatial Light Modulator extends our broad SLM product range for applications with particular requirements. The SLM device shows extreme phase stability, low latency and low crosstalk.
| Model | Description |
|---|---|
| ERIS-1.1-VIS-160 B | ．Reflectivity: 85 % ．Max. Phase Shift: 3.2 Pi @ 633 nm ．Wavelength Range: 420 –650 nm |
| ERIS-1.1-VIS-160 C | ．Reflectivity: 89 % ．Max. Phase Shift: 2.5 Pi @ 633 nm ．Wavelength Range: 420 –650 nm |
| ERIS-1.1-NIR-153 | ．Reflectivity: 76-90 % ．Max. Phase Shift: 8.5 Pi @ 450 nm, 2.4 Pi @ 1064 nm ．Wavelength Range: 420 –1100 nm |
| ERIS-1.1-TELCO-162 | ．Reflectivity: 90 % ．Max. Phase Shift: 2.3 Pi @ 1550 nm ．Wavelength Range: 1400 –1600 nm |
LUNA – Phase Only LCOS SLM
The LUNA Phase Only Spatial Light Modulator is our most compact SLM platform for integration into small sized or even portable solutions.
| Model | Description |
|---|---|
| LUNA-VIS-111 | ．Wavelength Range: 420 – 650 nm ．Reflectivity: 61 – 67 % (average 64 %) ．Max. Phase Shift: 4.3 π @ 450 nm, 3.2 π @ 520 nm, 2.4 π @ 635 nm |
| LUNA-NIR-147 | ．Wavelength Range: 680 – 1100 nm ．Reflectivity: 60 – 75 % (average 65 %) ．Max. Phase Shift: 3.3 π @ 800 nm, 2.3 π @ 1064 nm |
| LUNA-TELCO-115 | ．Wavelength Range: 1400 – 1700 nm ．Reflectivity: 70 % ．Max. Phase Shift: 2.3 π @ 1550 nm |
GAEA-2 .1- 10 Megapixel Phase Only LCOS SLM
The GAEA-2.1 Spatial Light Modulator is the highest resolution SLM on the market with extremely small pixel pitch.
The GAEA-2.1 phase only Spatial Light Modulator (SLM) consists of a driver unit with standard digital video interface (HDMI) and a phase only LCOS (Liquid Crystal on Silicon) microdisplay with 10 megapixel (4K) resolution (max 4160 x 2464 pixel) and 3.74 µm pixel pitch leading to an active area diagonal of 0.7”.

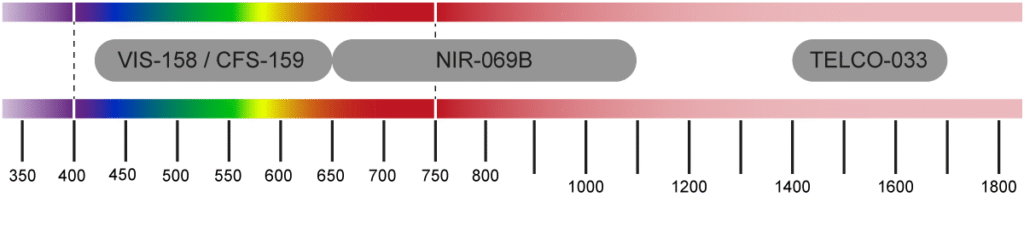

| Model | Description |
|---|---|
| GAEA-2.1-VIS-158 | ．Wavelength Range: 420 – 650 nm ．Reflectivity: 78 % average ．Max. Phase Shift: 4.7π @ 450 nm, 2.5π @ 633 nm |
| GAEA-2.1-CFS-159 | ．Wavelength Range: 420 – 650 nm ．Reflectivity: 76 % average ．Max. Phase Shift: min 2π @ visible range |
| GAEA-2.1-NIR-069B | ．Wavelength Range: 650 – 1100 nm ．Reflectivity: 69％ average ．Max. Phase Shift: 4.4π @ 650 nm, 2.4π @ 1064 nm |
| GAEA-2.1-TELCO-033 | ．Wavelength Range: 1400 – 1700 nm ．Reflectivity: 72％ average ．Max. Phase Shift: 2.6π @ 1550 nm |

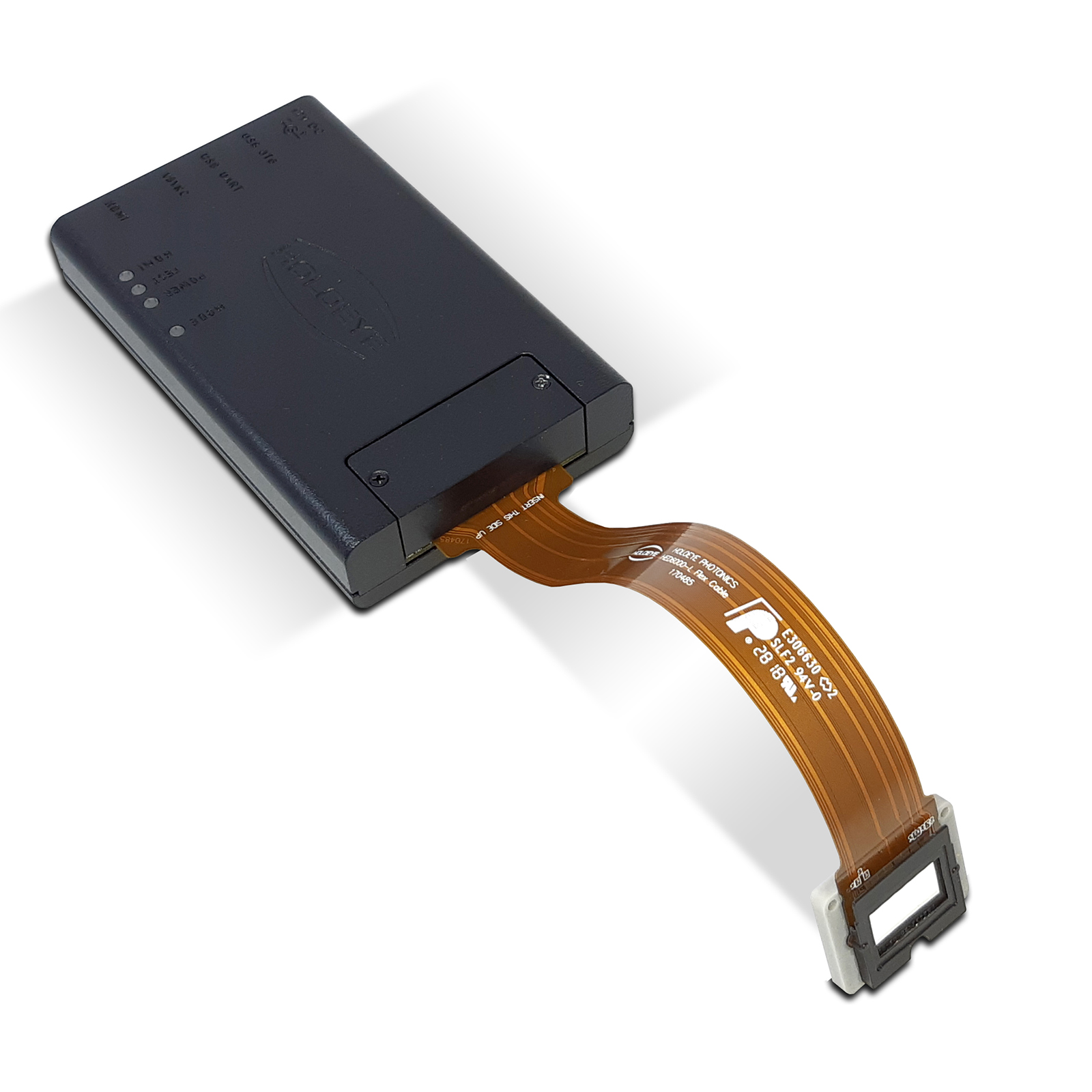

PLUTO-2.1 – Phase Only LCOS SLM
The PLUTO-2.1 LCOS Spatial Light Modulator is the all-rounder within our product range. It is the best qualified and diversified SLM platform with many versions optimized for specific requirements, including high reflectivity versions featuring a dielectric mirror for high power applications. The PLUTO hardware is already implemented in different industrial applications.
| Model | Description |
|---|---|
| PLUTO-2.1-UV-099 | ．Wavelength Range: 350 – 500 nm ．Reflectivity: 90％ (80％ at 500 nm) ．Max. Phase Shift: 5.2 Pi @ 355 nm, 4.9 Pi @ 405 nm ．Comment: Dielectric Mirror ．Recommendation: UV resistance, Higher Power Use |
| PLUTO-2.1-NIR-145 | ．Wavelength Range: 420 – 1100 nm ．Reflectivity: 80％ ．Max. Phase Shift: 5.5 Pi @ 520 nm, 3.1 Pi @ 800 nm, 2.2 Pi @ 1064 nm ．Recommendation: Broadband Use |
| PLUTO-2.1-VIS-014 | ．Wavelength Range: 420 – 650 nm ．Reflectivity: 65％ ．Max. Phase Shift: 4.2 Pi @ 530 nm, 3.0 Pi @ 650 nm ．Comment: ．Recommendation: Fast Response Time |
| PLUTO-2.1-VIS-016 | ．Wavelength Range: 420 – 650 nm ．Reflectivity: 67％ ．Max. Phase Shift: 6.9 Pi @ 530 nm, 5.2 Pi @ 633 nm ．Comment: High Retardation Version ．Recommendation: Low Phase Flicker |
| PLUTO-2.1-VIS-130 | ．Wavelength Range: 500 – 670 nm ．Reflectivity: 94％ (average) ．Max. Phase Shift: 3.2 Pi @ 530 nm, 2.5 Pi @ 633 nm ．Comment: Dielectric Mirror ．Recommendation: Higher Power Use |
| PLUTO-2.1-NIR-015 | ．Wavelength Range: 650 – 1100 nm ．Reflectivity: 65-73％ ．Max. Phase Shift: 5.4 Pi @ 800 nm, 3.6 Pi @ 1064 nm ．Comment: High Retardation Version ．Recommendation: Low Phase Flicker |
| PLUTO-2.1-NIR-113 | ．Wavelength Range: 730 – 940 nm ．Reflectivity: 95％ ．Max. Phase Shift: 2.5 Pi @ 800 nm ．Comment: Dielectric Mirror ．Recommendation: Higher Power Use |
| PLUTO-2.1-NIR-149 | ．Wavelength Range: 1000 – 1100 nm ．Reflectivity: 93％ ．Max. Phase Shift: 2.9 Pi @ 1064 nm ．Comment: Dielectric Mirror ．Recommendation: Higher Power Use |
| PLUTO-2.1-NIRO-023 | ．Wavelength Range: 1000 – 1400 nm ．Reflectivity: 74％ ．Max. Phase Shift: 4.2 Pi @ 1300 nm ．Comment: ．Recommendation: |
| PLUTO-2.1-TELCO-142 | ．Wavelength Range: 1500 – 1600 nm ．Reflectivity: 93％ ．Max. Phase Shift: 3.4 Pi @ 1550 nm ．Comment: Dielectric Mirror ．Recommendation: |
| PLUTO-2.1-SWIR-157 | ．Wavelength Range: 1700 – 2500 nm ．Reflectivity: 90％ ．Max. Phase Shift: 2 Pi @ 2500 nm ．Comment: ．Recommendation: Short Wavelength Infared |
LETO-3 – Phase Only LCOS SLM
The LETO-3 Phase Only Spatial Light Modulator is our fast SLM platform with high band width. The SLM is capable of color sequential phase operation.
| Model | Description |
|---|---|
| LETO-3-VIS-009 | ．Wavelength Range: 420 – 800 nm ．Reflectivity: 60％ – 75％* ．Max. Phase Shift: 3.7 Pi @ 530 nm, 2.2 Pi @ 800 nm |
| LETO-3-NIR-081 | ．Wavelength Range: 650 – 1100 nm ．Reflectivity: 60％ – 70％* ．Max. Phase Shift: 4.4 Pi @ 650 nm, 2.4 Pi @ 1064 nm |
| LETO-3-CFS-127 | ．Wavelength Range: 420 – 650 nm ．Reflectivity: ~ 70％ ．Max. Phase Shift: min 2 Pi @ visible range |
