Spec
| Product Series | Controller | Encoder | Motor |
|---|---|---|---|
| X-RST-AE High precision, high load motorized rotary stages with built-in controllers and direct encoders | √ | Direct Reading | Stepper Motor |
| X-RST-DE High precision motorized rotary stages with built-in controllers and direct encoders | √ | Direct Reading | Stepper Motor |
| X-RST-E High load motorized rotary stages with built-in controllers and motor encoders | √ | Motor/rotary | Stepper Motor |
| X-RST High load motorized rotary stages with built-in controllers | √ | – | Stepper Motor |
| RST-AE High precision, high load motorized rotary stages with direct encoders | – | Direct Reading | Stepper Motor |
| RST-DE High precision motorized rotary stages with direct encoders | – | Direct Reading | Stepper Motor |
| RST-E High load motorized rotation stages with built-in motor encoders | – | Motor/rotary | Stepper Motor |
| RST High load motorized rotation stages | – | – | Stepper Motor |
X-RST-AE Series: High precision, high load motorized rotary stages with built-in controllers and direct encoders
- Speed up to 60°/s and torque up to 70 N⋅m
- 300 kg centered load capacity
- 101.6 mm (4″) aperture
- Direct reading encoder for position correction; stage accuracy to 0.008°
- 200 Nm tilting moment capacity
- Ultra-smooth crossed roller bearings provide long life and excellent tilt, axial and radial error motion specifications
- Optional Ingress Protection versions available
| Model | Description |
|---|---|
| X-RST240B-AE56 | 360 degree rotation, 240 mm diameter, fine resolution, high torque, large aperture |
X-RST-DE Series: High precision motorized rotary stages with built-in controllers and direct encoders
- Speed up to 24 °/s and torque up to 10 N⋅m
- 50 kg centered load capacity
- 50.8 mm (2″) aperture with kinematic mounting options for repeatability of assembly
- Direct reading encoder for position correction; stage accuracy to 0.01°
- Multiple X-Series products in a daisy-chain can share a single power supply
- Built-in controller; daisy-chains with other Zaber products
- Custom versions available
| Model | Description |
|---|---|
| X-RST120AK-DE50 | 360 degree rotation, 120 mm diameter, fine resolution, high torque |

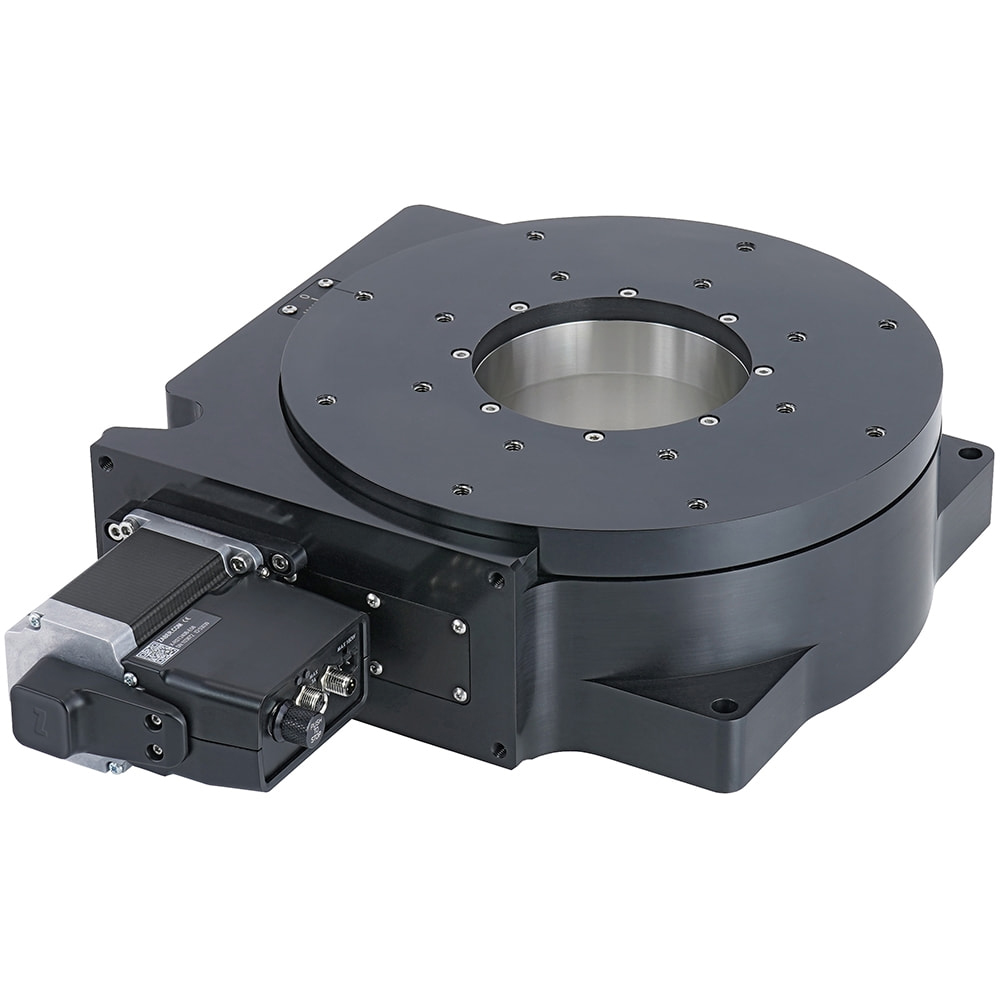

X-RST-E Series: High load motorized rotary stages with built-in controllers and motor encoders
- Speed up to 60°/s and torque up to 70 N⋅m
- 300 kg centered load capacity
- 50.8 mm (2″) or 101.6 mm (4″) aperture
- Multiple X-Series products in a daisy-chain can share a single power supply
- Encoder position feedback with slip/stall detection and automatic recovery
- Built-in controller; daisy-chains with other Zaber products
- Optional Ingress Protection versions available
- Custom versions available
| Model | Description |
|---|---|
| X-RST120AK-E03 | 120 mm diameter |
| X-RST240B-E08 | 240 mm diameter, large aperture |
X-RST Series: High load motorized rotary stages with built-in controllers
- Speed up to 60°/s and torque up to 70 N⋅m
- Up to 300 kg centered load capacity
- 50.8 mm (2″) or 101.6 mm (4″) aperture
- Multiple X-Series products in a daisy-chain can share a single power supply
- Built-in controller; daisy-chains with other Zaber products
- Optional Ingress Protection versions available
- Custom versions available
| Model | Description |
|---|---|
| X-RST120AK | 120 mm diameter |
| X-RST240B | 240 mm diameter, large aperture |

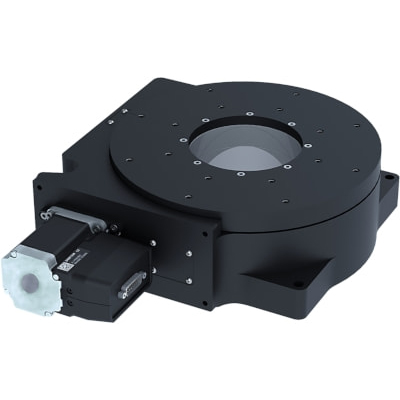

RST-AE Series: High precision, high load motorized rotary stages with direct encoders
- Speed up to 60°/s and torque up to 70 N⋅m
- 300 kg centered load capacity
- 101.6 mm (4″) aperture
- Direct reading encoder for position correction; stage accuracy to 0.008°
- 200 Nm tilting moment capacity
- Ultra-smooth crossed roller bearings provide long life and excellent tilt, axial and radial error motion specifications
- Optional Ingress Protection versions available
| Model | Description |
|---|---|
| RST240B-AE56T10A | 360 degree rotation, 240 mm diameter, fine resolution, high torque, large aperture |
RST-DE Series: High precision motorized rotary stages with direct encoders
- Speed up to 24 °/s and torque up to 10 N⋅m
- 50.8 mm (2 inch) aperture with kinematic mounting options for repeatability of assembly
- 50 kg centered load capacity
- Continuous 360° rotation stage
- Direct reading encoder for position correction; stage accuracy to 0.01°
- Designed for use with an X-MCC Series stepper motor controller or any 2-phase stepper motor controller
- With AutoDetect, the X-MCC controller configures its settings automatically for the connected peripheral
- Custom versions available
| Model | Description |
|---|---|
| RST120AK-DE50T10A | 360 degree rotation, 120 mm diameter, fine resolution, high torque |
RST-E Series: High load motorized rotation stages with built-in motor encoders
- Speed up to 60 °/s and torque up to 70 N⋅m
- Continuous 360° rotation stage
- Up to 300 kg centered load capacity
- 50.8 mm (2″) or 101.6 mm (4″) aperture
- Encoder position feedback with slip/stall detection and automatic recovery
- Designed for use with an X-MCC Series stepper motor controller or any 2-phase stepper motor controller
- With AutoDetect, the X-MCC controller configures its settings automatically for the connected peripheral
- Optional Ingress Protection versions available
- Custom versions available
| Model | Description |
|---|---|
| RST120AK-E03T3A | 120 mm diameter |
| RST240B-E08T3A | 240 mm diameter, large aperture |

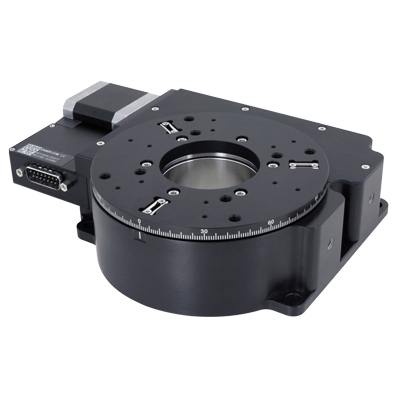

RST Series: High load motorized rotation stages
- Speed up to 60°/s and torque up to 70 N⋅m
- Continuous 360° rotation stage
- Up to 300 kg centered load capacity
- 50.8 mm (2″) or 101.6 mm (4″) aperture
- Designed for use with an X-MCC Series stepper motor controller or any 2-phase stepper motor controller
- With AutoDetect, the X-MCC controller configures its settings automatically for the connected peripheral
- Optional Ingress Protection versions available
- Custom versions available
| Model | Description |
|---|---|
| RST120AK-T3A | 120 mm diameter |
| RST240B-T3A | 240 mm diameter, large aperture |
