Spec
| Product Series | Controller | Encoder | Motor | Vacuum Rating |
|---|---|---|---|---|
X-RSW-E Motorized rotary stages with built-in controllers and motor encoders | √ | Motor/rotary | Stepper Motor | – |
X-RSW Motorized rotary stages with built-in controllers | √ | – | Stepper Motor | – |
RSW-E Motorized rotation stages with built-in motor encoders | – | Motor/rotary | Stepper Motor | – |
RSW Motorized rotation stages | – | – | Stepper Motor | – |
X-RSW-SV2 High vacuum motorized rotary stages with built-in controllers | √ | – | undefined | High Vacuum (10-6 torr) |
RSW-V2 High vacuum motorized rotary stages | – | – | undefined | High Vacuum (10-6 torr) |
X-RSW-SV1 Low vacuum motorized rotary stages with built-in controllers | √ | – | undefined | Low Vaccum (10-3 torr) |
RSW-V1 Low vacuum motorized rotary stages | – | – | undefined | Low Vaccum (10-3 torr) |
X-RSW-E Series: Motorized rotary stages with built-in controllers and motor encoders
- Speed up to 75 rpm and torque up to 2.25 N⋅m
- Two lens holders allow for use as a polarizer mount
- Worm gear driven for continuous rotation
- Built-in controller; daisy-chains with other Zaber products
- Encoder position feedback with slip/stall detection and automatic recovery
- Multiple X-Series products in a daisy-chain can share a single power supply
- Custom versions available
| Model | Description |
|---|---|
| X-RSW60A-E03 | Fine resolution, high torque |
| X-RSW60C-E03 | Coarse resolution, high speed |
X-RSW Series: Motorized rotary stages with built-in controllers
- Speed up to 75 rpm and torque up to 2.25 N⋅m
- 20 kg centered load capacity
- Two lens holders allow for use as a polarizer mount
- Worm gear driven for continuous rotation
- Built-in controller; daisy-chains with other Zaber products
- Multiple X-Series products in a daisy-chain can share a single power supply
- Custom versions available
| Model | Description |
|---|---|
| X-RSW60A | Fine resolution, high torque |
| X-RSW60C | Coarse resolution, high speed |
RSW-E Series: Motorized rotation stages with built-in motor encoders
- Speed up to 75 rpm and torque up to 280 N⋅cm
- 23 mm aperture
- Worm gear driven for continuous rotation
- Two lens holders allow for use as a polarizer mount
- Encoder position feedback with slip/stall detection and automatic recovery
- Designed for use with an X-MCC Series stepper motor controller or any 2-phase stepper motor controller
- With AutoDetect, the X-MCC controller configures its settings automatically for the connected peripheral
- Custom versions available
| Model | Description |
|---|---|
| RSW60A-E03T3A | Fine resolution, high torque |
| RSW60C-E03T3A | Coarse resolution, high speed |
RSW Series: Motorized rotation stages
- Speed up to 75 rpm and torque up to 280 N⋅cm
- 23 mm aperture
- Worm gear driven for continuous rotation
- Two lens holders allow for use as a polarizer mount
- Designed for use with an X-MCC Series stepper motor controller or any 2-phase stepper motor controller
- With AutoDetect, the X-MCC controller configures its settings automatically for the connected peripheral
- Custom versions available
| Model | Description |
|---|---|
| RSW60A-T3A | Fine resolution, high torque |
| RSW60C-T3A | Coarse resolution, high speed |
X-RSW-SV2 Series: High vacuum motorized rotary stages with built-in controllers
- Vacuum compatible to 10-6 Torr
- Speed up to 100 °/s and torque up to 100 N⋅cm
- 20 kg load capacity
- Worm gear driven for continuous rotation
- Integrated stepper motor controller and motor driver allows for easy-to-use control
- Only 4 feedthrough wires required to control all units in the daisy-chain via serial port (with an X-PIB adaptor)
| Model | Description |
|---|---|
| X-RSW60A-SV2 | 360 degree rotation, 60 mm diameter, fine resolution, low speed |
RSW-V2 Series: High vacuum motorized rotary stages
- Vacuum compatible to 10-6 Torr
- Speed up to 100 °/s and torque up to 100 N⋅cm
- 20 kg load capacity
- Worm gear driven for continuous rotation
- Designed for use with an X-MCC Series stepper motor controller or any 2-phase stepper motor controller
- Only 7 feedthrough wires required to control these units
| Model | Description |
|---|---|
| RSW60A-V2T4 | 360 degree rotation, 60 mm diameter, fine resolution, low speed |
X-RSW-SV1 Series: Low vacuum motorized rotary stages with built-in controllers
- Vacuum compatible to 10-3 Torr
- Speed up to 100 °/s and torque up to 100 N⋅cm
- 20 kg load capacity
- Worm gear driven for continuous rotation
- Integrated stepper motor controller and motor driver allows for easy-to-use control
- Only 4 feedthrough wires required to control all units in the daisy-chain via serial port (with an X-PIB adaptor)
| Model | Description |
|---|---|
| X-RSW60A-SV1 | 360 degree rotation, 60 mm diameter, fine resolution, low speed |

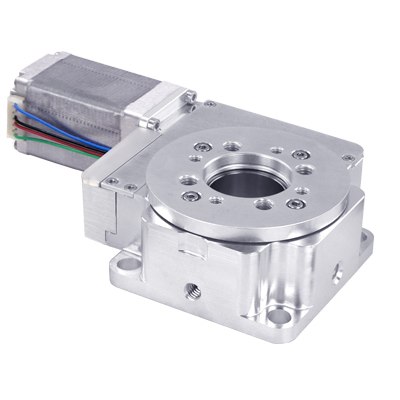

RSW-V1 Series: Low vacuum motorized rotary stages
- Vacuum compatible to 10-6 Torr
- Speed up to 100 °/s and torque up to 100 N⋅cm
- 20 kg load capacity
- Worm gear driven for continuous rotation
- Integrated stepper motor controller and motor driver allows for easy-to-use control
- Only 4 feedthrough wires required to control all units in the daisy-chain via serial port (with an X-PIB adaptor)
| Model | Description |
|---|---|
| RSW60A-V1T4 | 360 degree rotation, 60 mm diameter, fine resolution, low speed |
