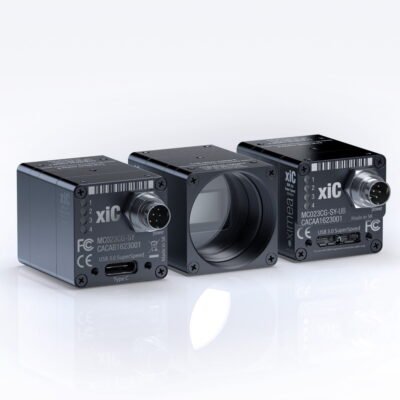

xiC – Small, light, versatile. Camera with incredible image quality.

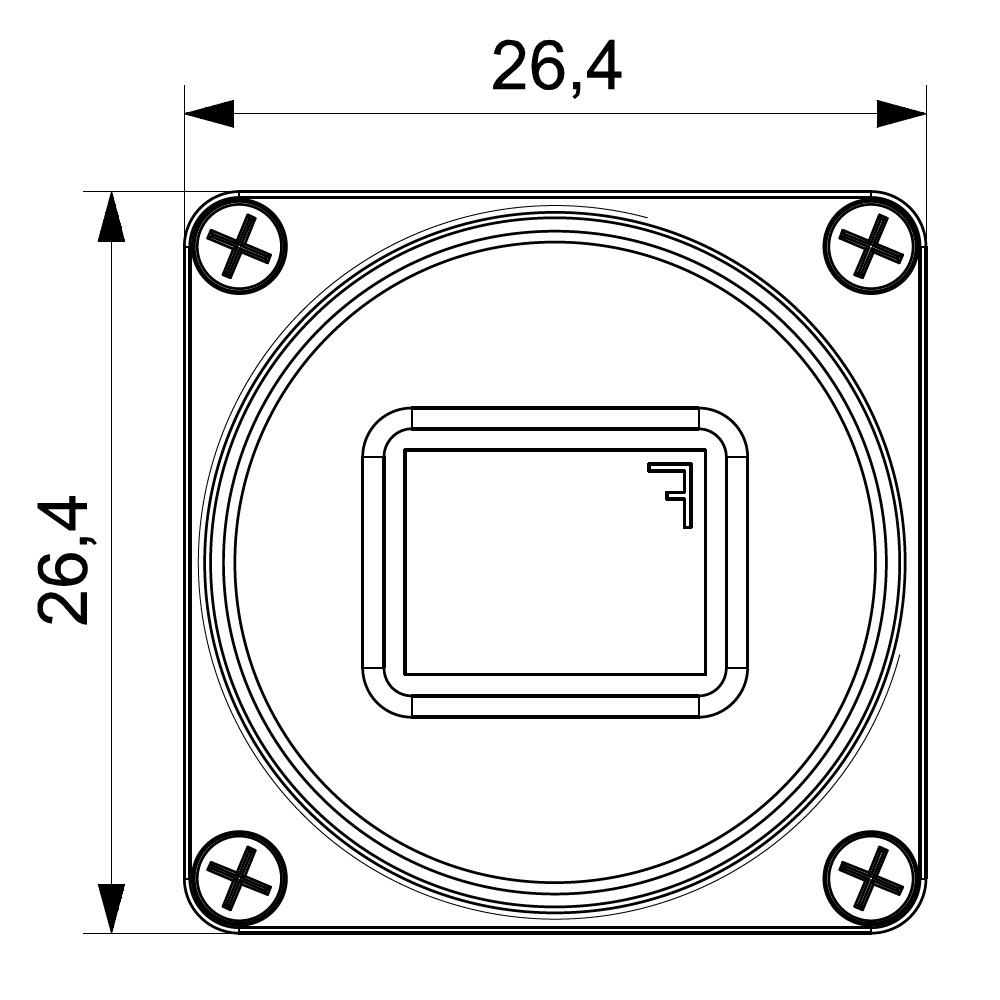

  • Compact cameras with Sony Pregius™ sensors – 26 x 26 x 33 mm
  • Fast speed from 2.3 Mpix at 165 FPS to 12 Mpix at 31 FPS
  • Cool economy – Low power consumption with under 3 watts
  • All-around support – Windows, macOS, Linux and embedded platforms
  • Industry standard interface – Compatible with USB 3.1 Gen 1
  • AIA standard – USB3 Vision standard compliant

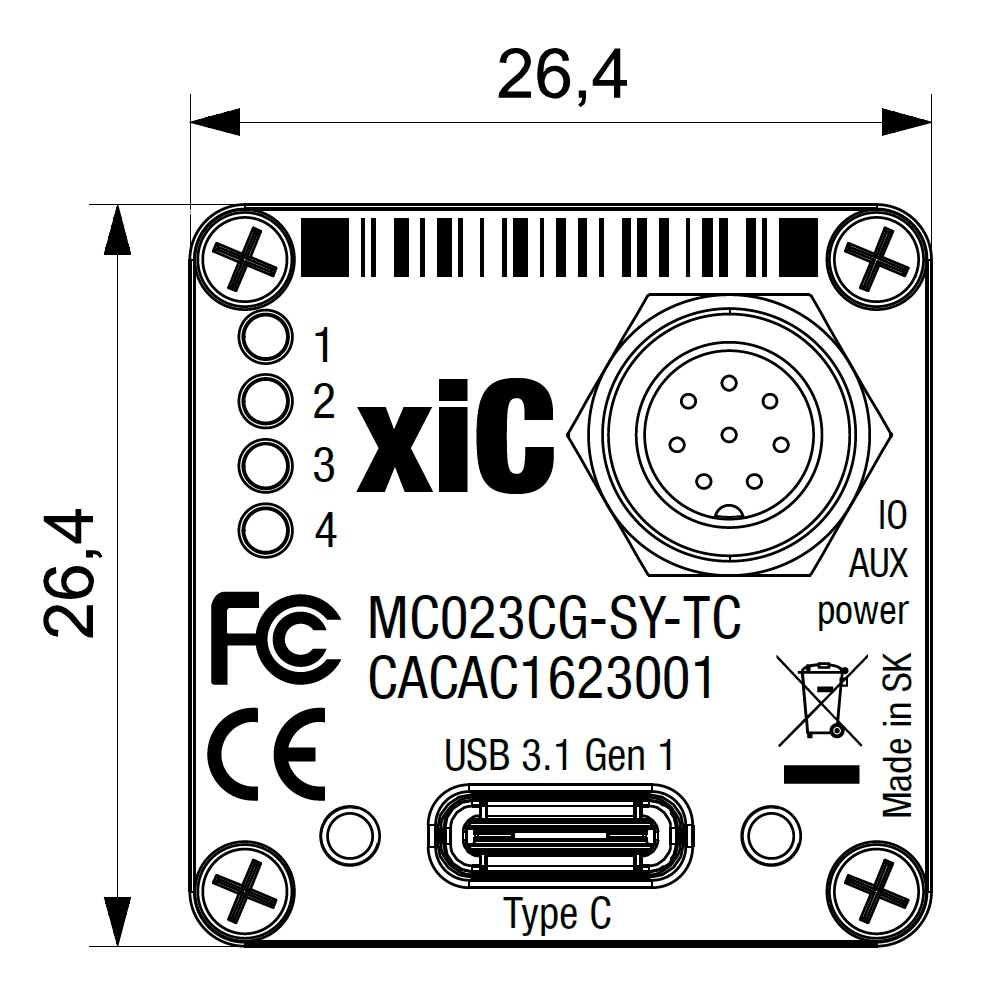

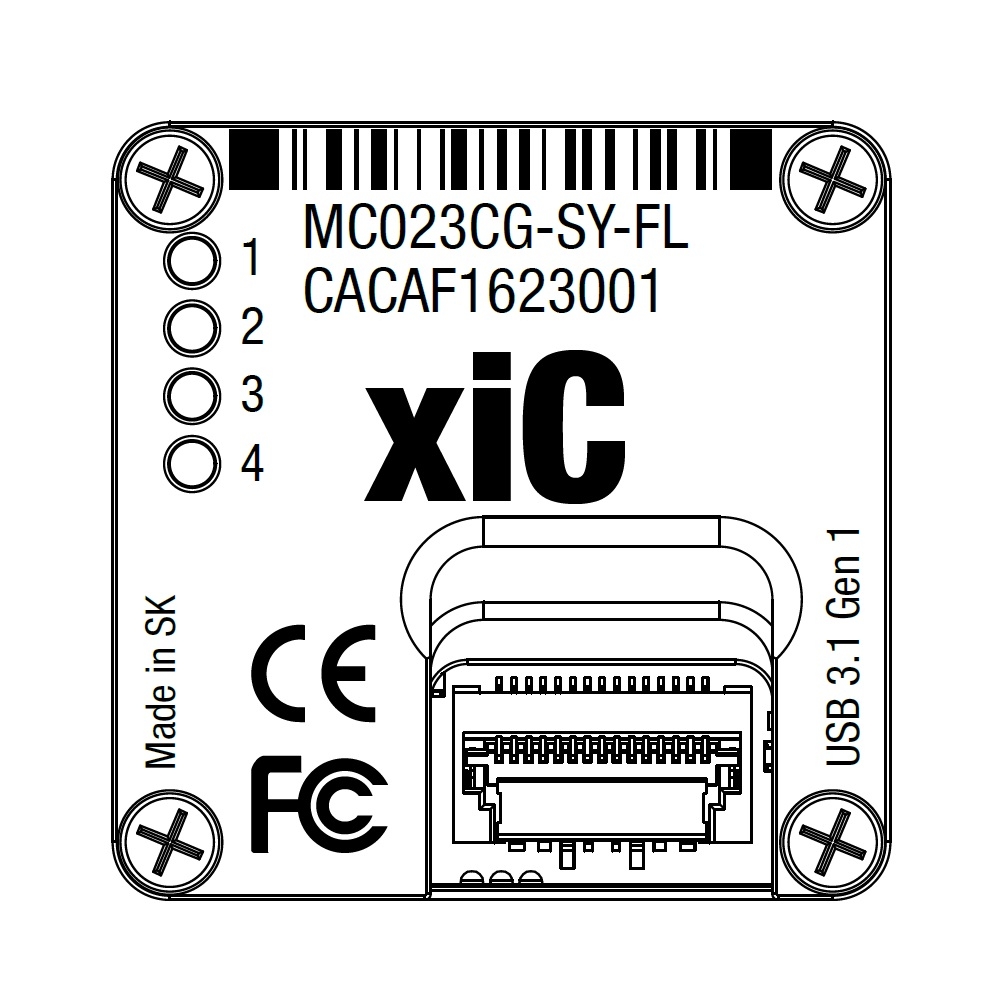

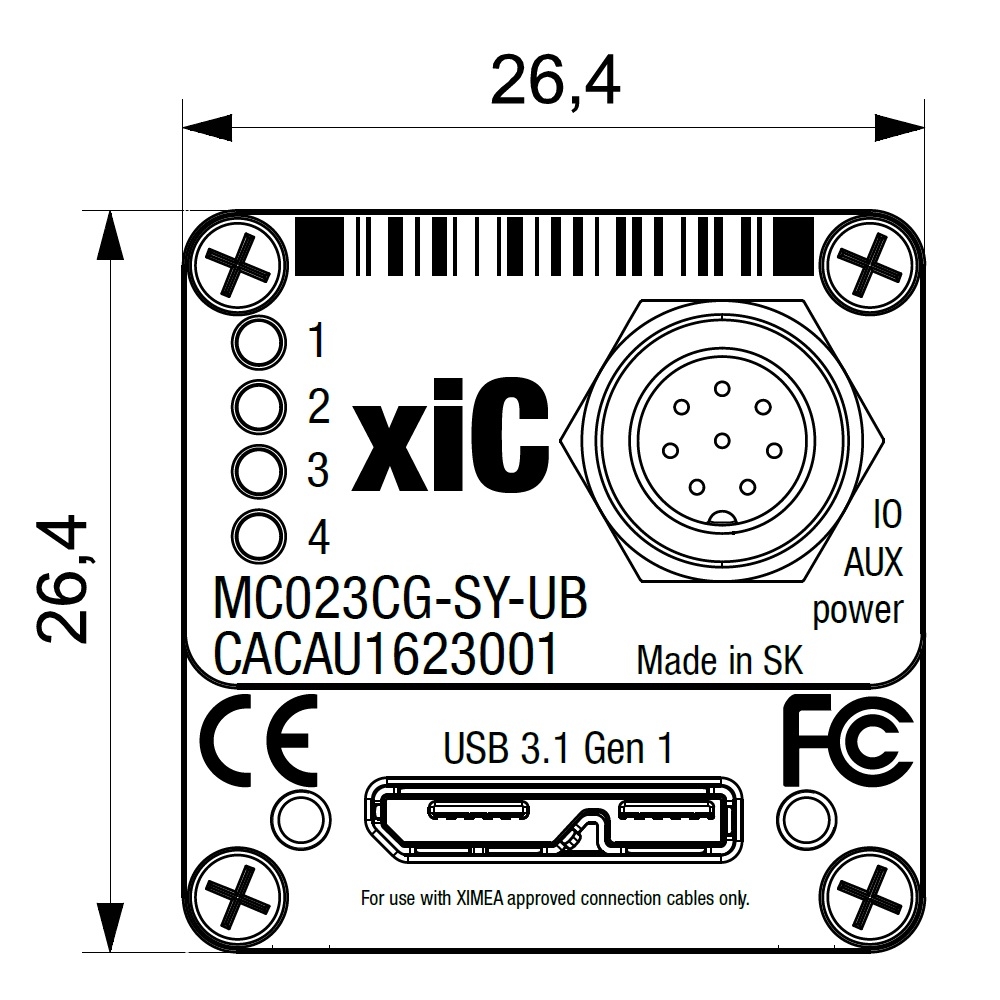

  • Offered with several connectors – micro-B, type-C and flex cable
  • Software interfaces – GenICam / GenTL & highly optimized SDK
  • Synchronization – Programmable opto-isolated inputs and outputs
  • Customizable – Board level stack for OEM use with flat flex cables
  • User friendly – Intuitive API, easy switch from C- to CS-mount
  • Optional – IMX287, IMX273, IMX249, IMX265, IMX264, IMX267, IMX304
  • Cost efficient – Excellent value by utilizing the newest technologies
Category : Tags : , ,

Spec

What is xiC?

The xiC camera line is highly versatile with a wide range of the most modern global shutter CMOS sensors up to 24.5 Mpix in resolution.
The ultra-compact form factor, barely larger than the C-mount, combined with micro-B, type-C, and flex ribbon connectors make these cameras the perfect fit for various applications, especially for automation and embedded vision systems.
For the same form-factor and sensor options, but increased bandwidth of 10 Gbit/s resulting in doubled frame rates, there is the xiX family.

Models and sensors
ModelResolutionSensor typeSensor modelSensor resolutionSensor sizePixel sizeDynamic rangeFrame rates
MC023MG-SY2.3 MPixMonochromeIMX1741936 x 12161/1.2″5.86 µm72.1 dB156 FPS
MC023CG-SY2.3 MPixColor IMX1741936 x 12161/1.2″5.86 µm72.1 dB156 FPS
MC031CG-SY3.1 MPixColorIMX2522064 x 15441/1.8″3.45 µm71.1 dB116 FPS
MC031MG-SY3.1 MPixMonochromeIMX2522064 x 15441/1.8″3.45 µm71.2 dB116 FPS
MC050CG-SY5 MPixColorIMX2502464 x 20562/3″3.45 µm71.1 dB73 FPS
MC050MG-SY5 MPixMonochromeIMX2502464 x 20562/3″3.45 µm71.2 dB73 FPS
MC050ZG-SY-UB5 MPixMonochromeIMX250 Polarized2464 x 20562/3″3.45 µm76 FPS
MC050YG-SY-UB5 MPixColorIMX250 Polarized2464 x 20562/3″3.45 µm76 FPS
MC051CG-SY-PG4-HDR5.1 MPixColorIMX5372472 x 20641/1.8″2.74 µm69 FPS
MC051CG-SY-PG45.1 MPixColorIMX5472472 x 20641/1.8″2.74 µm68 FPS
MC051MG-SY-PG4-HDR5.1 MPixMonochromeIMX5372472 x 20641/1.8″2.74 µm69 FPS
MC051MG-SY-PG45.1 MPixMonochromeIMX5472472 x 20641/1.8″2.74 µm68 FPS
MC081MG-SY-PG4-HDR8.1 MPixMonochromeIMX5362856 x 28482/3″2.74 µm44 FPS
MC081CG-SY-PG4-HDR8.1 MPixColorIMX5362856 x 28482/3″2.74 µm44 FPS
MC081MG-SY-PG48.1 MPixMonochromeIMX5462856 x 28482/3″2.74 µm44 FPS
MC081CG-SY-PG48.1 MPixColorIMX5462856 x 28482/3″2.74 µm44 FPS
MC089MG-SY8.9 MPixMonochromeIMX2554112 x 21761″3.45 µm70.9 dB41 FPS
MC089CG-SY8.9 MPixColorIMX2554112 x 21761″3.45 µm70.9 dB41 FPS
MC124CG-SY12.3 MPixColorIMX2534112 x 30081.1″3.45 µm70.9 dB30 FPS
MC124MG-SY12.3 MPixMonochromeIMX2534112 x 30081.1″3.45 µm71.0 dB30 FPS
MC124MG-SY-PG412.4 MPixMonochromeIMX5454128 x 30081/1.1″2.74 µm71 dB29 FPS
MC124CG-SY-PG4-HDR12.4 MPixColorIMX5354128 x 30081/1.1″2.74 µm29 FPS
MC124MG-SY-PG4-HDR12.4 MPixMonochromeIMX5354128 x 30081/1.1″2.74 µm29 FPS
MC124CG-SY-PG412.4 MPixColorIMX5454128 x 30081/1.1″2.74 µm71 dB29 FPS
MC161MG-SY16.1 MPixMonochromeIMX5425328 x 30401.1″2.74 µm70.1 dB22 FPS
MC161MG-SY-HDR16.1 MPixMonochromeIMX5325328 x 30401.1″2.74 µm70.4 dB22 FPS
MC161CG-SY-HDR16.1 MPixColorIMX5325328 x 30401.1″2.74 µm70.3 dB22 FPS
MC161CG-SY16.1 MPixColorIMX5425328 x 30401.1″2.74 µm70.4 dB22 FPS
MC203MG-SY-HDR20.3 MPixMonochromeIMX5314512 x 45121.1″2.74 µm70.3 dB18 FPS
MC203CG-SY20.3 MPixColorIMX5414512 x 45121.1″2.74 µm70.4 dB18 FPS
MC203MG-SY20.3 MPixMonochromeIMX5414512 x 45121.1″2.74 µm70.4 dB18 FPS
MC203CG-SY-HDR20.3 MPixColorIMX5314512 x 45121.1″2.74 µm70.3 dB18 FPS
MC245CG-SY-HDR24.5 MPixColorIMX5305328 x 46081.2″2.74 µm70.2 dB15 FPS
MC245MG-SY-HDR24.5 MPixMonochromeIMX5305328 x 46081.2″2.74 µm70.4 dB15 FPS
MC245CG-SY24.5 MPixColorIMX5405328 x 46081.2″2.74 µm70.4 dB15 FPS
MC245MG-SY24.5 MPixMonochromeIMX5405328 x 46081.2″2.74 µm70.3 dB15 FPS

(1) Maximum frame rates measured at 8 bits per pixel RAW data in free run mode. Please check faster speed model versions from xiX line based on PCIe interface.
(2) All models are also available with USB type C connector or ideal for embedded vision systems – Board level versions and flat ribbon flex cable connectors.
