Controllers & Joysticks

  • Easy Set Up
    Plug and play compatibility with Zaber stages, actuators, and motors.
  • Free Intuitive Software
    Configure, tune, and optimize devices in minutes with Zaber Launcher software. Streamline your development with Zaber Motion Library: the motion control industry’s most developer-friendly API.
  • High Performance Motion
    Tackle demanding tasks, including nanometer level motions, multi-axis synchronization, and complex trajectories.
  • Flexible Integration Options
    Communication options including Ethernet, EtherCAT, RS‑232, and USB. Interface directly to sensors and external hardware with digital & analog I/O, encoder output, and E‑Stop options.

ZABER

Categories : , Tags : , , , ,

Spec

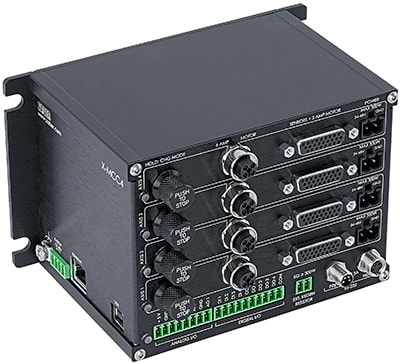

MCC Family – Universal Drive Motor Controllers
  • Control up to 4 axes with complex multi-axis trajectories or simple point-to-point motion
  • Drive stepper and linear servo motors up to 6 Arms (10 A peak)
  • Flexible communication options: RS-232, USB, Ethernet, or EtherCAT
  • Digital I/O, analog I/O, and E-Stop capability
  • Plug and play compatibility with Zaber stages and actuators
ModelDescription
E-MCC1Universal Controller/drive | 1 Axis | Up To 6 A Per Phase | EtherCAT
X-MCC11 Axis | With IO | Up To 6 A Per Phase
X-MCC22 Axis | With IO | Up To 6 A Per Phase
X-MCC33 Axis | With IO | Up To 6 A Per Phase
X-MCC44 Axis | With IO | Up To 6 A Per Phase
DownloadDatasheetManual
E-MCC1DatasheetManual
X-MCC1DatasheetManual
X-MCC2DatasheetManual
X-MCC3DatasheetManual
X-MCC4DatasheetManual

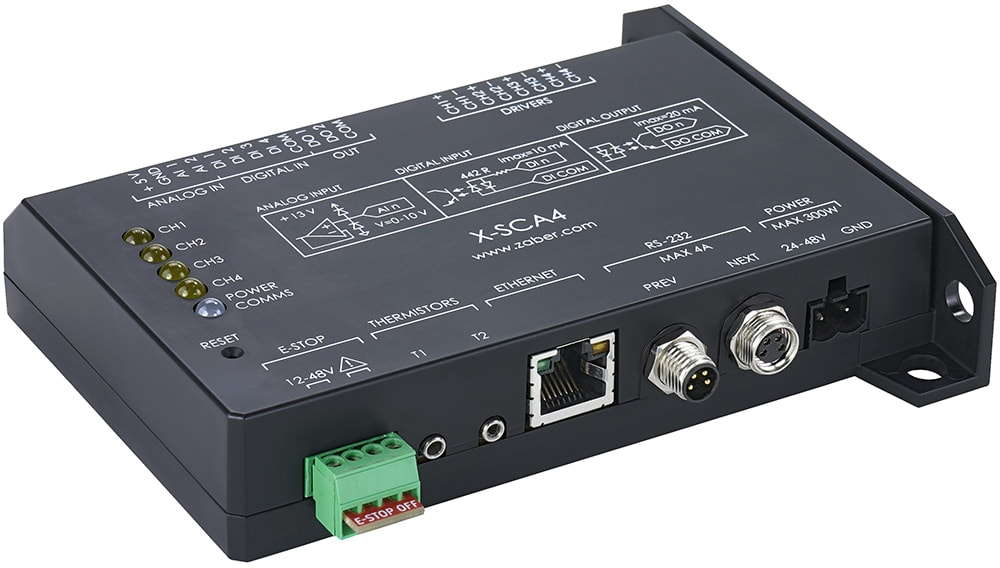

X-SCA4 Series – Universal process controller
  • Easily integrate a wide variety of DC components with the Zaber ecosystem including valves, solenoids, heating elements, pumps, optical shutters, DC motors, and more
  • Interface with all connected components through our free, intuitive software and API
  • 4 independent channels can power nearly any DC load under 4 amps
  • Supports manual, PID, and 2-state (on/off) control using either temperature or voltage feedback
  • 4 isolated digital inputs and 2 isolated digital outputs for high speed triggers, alarms, or general purpose I/O
  • Connect and monitor over ethernet from anywhere in the world
  • Output voltage configurable from 1.5 V to 48 V DC
  • E-Stop input allows for immediate interruption of power to connected devices
  • Accessories include: optional DIN rail mounting and high precision thermistors
ModelDescription
X-SCA4Process Controller | 4x Drivers With IO | Ethernet And 2x Thermistor Sensors
DownloadDatasheetManual
X-SCA4DatasheetManual

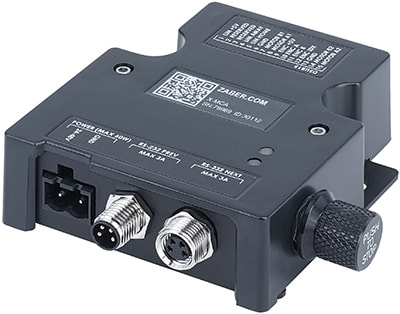

X-MCA Series – Stepper Motor Controllers
  • Controls any bipolar stepper motor or actuator with high resolution using an integrated 1.0 Arms (1.4 A peak) per phase driver with customizable micro-stepping
  • Uses AutoDetect to identify and configure Zaber peripherals
  • Intuitive ASCII protocol simplifies complex automation tasks
  • Designed for easy mounting to panels, breadboards, lab benches, DIN rails and enclosures
  • Supports single-ended motor encoders for closed-loop control
ModelDescription
X-MCA2 Phase
X-MCA-S2 Phase
DownloadDatasheetManual
X-MCADatasheetManual
X-MCA-SDatasheetManual

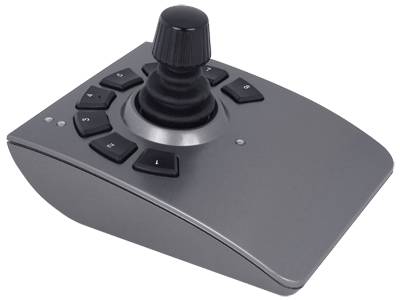

X-JOY3 Series – Programmable 3-axis joystick

The X-JOY3 is compatible with all Zaber motor controllers and devices with built-in controllers. When connected with other X-Series products, power can be shared between all devices in the chain, reducing the number of power supplies needed.

ModelDescription
X-JOY3Programmable 3-axis joystick
Communication Interface: RS-232
Communication Protocol: Zaber ASCII (Default), Zaber Binary
Data Cable Connection: Locking 4-pin M8
Power Supply: 24-48 VDC
Power Plug: 2-pin Screw Terminal
Maximum Current Draw: 50 mA
Manual Control: 3-axis joystick, 8 programmable keys
DownloadDatasheetManual
X-JOY3DatasheetManual
